FCX2000 Series

Provided tools suitable for many applications

FCX2000 series has 2 tool holder in the carriage.
Using 2 different kind of tool allows to do a different job without exchanging a tool at the same time. it can increase work efficiency.

Cutting blade

A variety of the cutting blade in the line-up for different applications

CB09UB

For vinyl media

CB15U

For thick media

CB15U-K30

For thicker media, small character or Sand-blast rubber

CB15U-K20

For Sand-blast rubber

CB15UA

For High intensity reflective film

CB15UA-K30

For High intensity reflective film

CB30UC

For Rigid media, Corrugated board

Creasing tool

Added to the current 3 different type of the creasing tool, new creasing tool PM-CT-002 is now available. This new tool reduces peeling and cracking on the printed surface during the creasing/scoring process compared to our existing tools.

PM-CT-002

Pen type, for curves on heavy paper

CP-001

Stick type, for heavy paper

CP-002

Roller type, for cardboard

CP-003

Roller type, for corrugated board

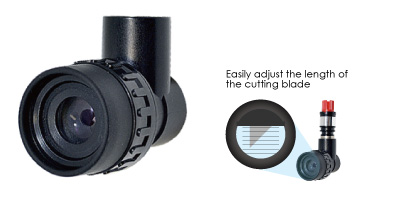

Loupe for cutting blade (PM-CT-001)

The loupe is a standard accessory used to easily adjust extruded blade length with the PHP33/PHP35 blade holders.

Useful utility space

Storing supplies as the cutting blade, blade holder, adhesive tape or others.

Roll media stoker

Various roll type material can be mounted, besides of sheet type media.
Supported media width : up to 950 mm
Supported media weight : up to 5 kg

Enhancement of safety

Supports a dedicated stop switch for stopping the machine when emergency case is occurred.
Also, the optional Warning Light will notice you the current operation state.
For requests of installing a Warning Light on your FCX2000, please contact local representative of us.

Intuitive operation with 3.7-inch graphic type LCD

Settings can be easily set using the large 3.7-inch LCD (240 x 128 dots) and tactile control panel.
